Parent Layer: February 26

Name: Electricity Transmission Capacity

Display Field: Status

Type: Feature Layer

Geometry Type: esriGeometryPolygon

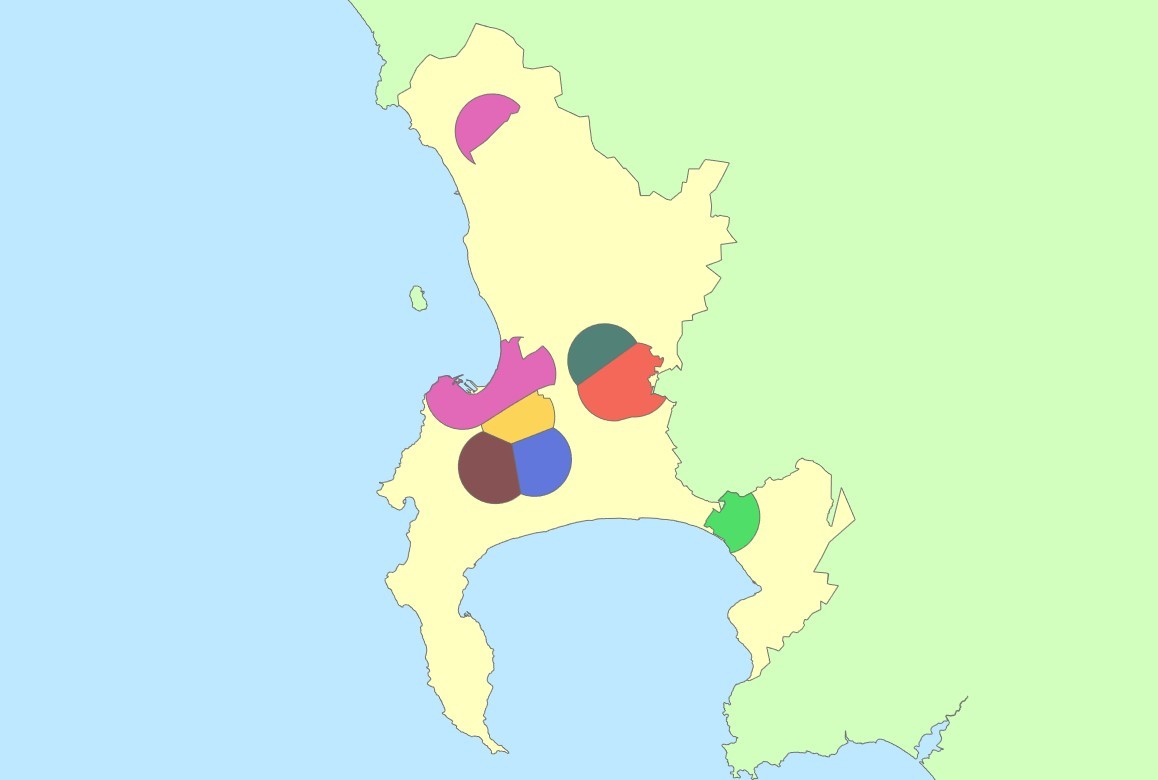

Description: The file contains the areas in which a 132kV connection from a City of Cape Town switching station is either readily available or available in a specified timeframe.

Service Item Id: 341bb3dd82224b1fabe0ff100039ae08

Copyright Text: Electricity Generation and Distribution Department within Energy and Climate Change Directorate, Transmission System Development Section

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2037627.4552073725
YMin: -4077244.2394914944
XMax: 2103094.369424834
YMax: -3957871.4839981627
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [252, 189, 195, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Status ( type: esriFieldTypeString, alias: Status, length: 254 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Voltage_kV ( type: esriFieldTypeDouble, alias: Voltage_kV )
• Instld_MVA ( type: esriFieldTypeDouble, alias: Instld_MVA )
• NumSpreBkr ( type: esriFieldTypeDouble, alias: NumSpreBkr )
• Year ( type: esriFieldTypeSmallInteger, alias: Year )
• Substation ( type: esriFieldTypeString, alias: Substation, length: 50 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
